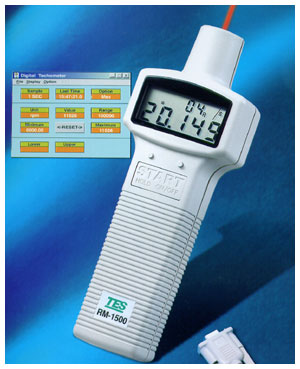

회전계 RM-1500/RM-1501



FEATURES ● 5 Digits LCD Display
● Max/Min/Hold : True Average
● Light Reflex Measuring
● Auto Range RPM
● Range 10.00 to 99,999 RPM
● RS-232(RM-1501)
● Measurig Distance 50~300mm
● Contact RPM and circumferential velocity measurements in
    one simple adaptor(RM-1502)
● Event counter with elapsed time
● Combination for non-contact measurements

Specifications

  • Speed(Non-contact)
    •   Range Resolution Accuracy
    RPM 10.00-99999 0.001/0.01/0.1/1 0.04%±2 dgts
    rps(HZ) 0.200-2000.0 0.001/0.01/0.1 0.04%±2 dgts
  • Speed(Non-contact)
    •   Range Resolution Accuracy
    RPM/(/ symoblizes "contact") 10.00-29999 0.001/0.01/0.1/1 0.04%±2 dgts
    m/min 1.000-2999.9 0.001/0.01/0.1 0.04%±2 dgts
    ft/min 3.000-10000 0.001/0.01/0.1 0.04%±2 dgts
    yard/min 1.000-3000 0.001/0.01/0.1 0.04%±2 dgts
  • Event contact
    • Range Max.Input Frequency
    0-99999 10KHz. with 5% duty cycle
  • External TTL Input : High > 4.5V (RM1501)
  • Display : 5 digits 99999 counts
  • Sampling Rate : 0.7 second (>60rpm)>1 second(10 to 60 rpm)
  • Measuring Distance : 50 to 300 mm
  • Time Base : 4.0 MHz Quartz Crystal
  • Range Selection : Automatic
  • Battery : Four 1.5V batteries (AA, UM-3)
  • Power Consumption : 1.5mA (Idle) 27mA(Non-contact Measurement) 34mA(Contact Measurement)
  • Auto-Power-Off : 30 minutes
  • Operating Temp : 0 to 50°C(32 to 122°F)
  • Size : 172mm×63mm×36mm
  • Weight : 190g(including battery)
  • Accessories : Carrying case×1, Reflective tape×1, Instruction Manual×1, Software & RS-232 Cable (RM-1501)
  • Optional Accessory : Contact Adaptor(RM-1502)
