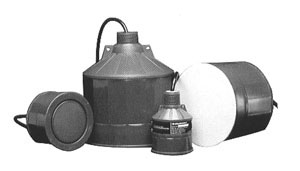

HOME > 제품소개 > 레벨센서 > Echomax XPS and XCT Transducers
앞으로도 양질의 제품공급에 최선의 노력을 다하겠습니다.
http://woojininst.co.kr 우진계측기(주)
Product Features
● Built-in temperature compenation
● Low ringing-cuts blanking distance
● Closed cell foam- immune to moisture and temperature changes
● Self-cleaning and low maintenance
● 2-wire interconnection
● Chemically resistant
● FM approved versions available
● Hermetically sealed
| model | XPS-10 | XPS-10F | XPS-15 | XPS-15F | XPS-30 | XPS-40 | XCT-8 | XCT-12 |
|---|---|---|---|---|---|---|---|---|
| Range | 0.3 to
10m (1 to 33 ft) |
0.3 to
10m (1 to 33 ft) |
0.3 to 15m(1 to50 ft) | 0.3 to 15m(1 to 50ft) | 0.6 to 30m(2 to 100ft) | 0.9 to 40m(3 to 130ft) | 0.45 to 8m(1.5 to 26ft) | 0.45 to
12m (1.5 to 40ft) |
| Frequency | 43kHz | 43kHz | 43kHz | 43kHz | 30kHz | 22kHz | 43kHz | 43kHz |
| Beam Angle | 12° |
12° | 6° | 6° | 6° | 6° | 12° | 6° |
| Pressure | 8 bar (120 PSI) |
8 bar (120 PSI) |
8 bar (120 PSI) |
8 bar (120 PSI) |
8 bar (120 PSI) |
8 bar (120 PSI) |
8 bar (120 PSI) |
8 bar (120 PSI) |
| Environmental | ||||||||
| *Location | indoor/ outdoor |
indoor/ outdoor |
indoor/ outdoor |
indoor/ outdoor |
indoor/ outdoor |
indoor/ outdoor |
indoor/ outdoor |
indoor/ outdoor |
| *Altitude | 2000m max | 2000m max | 2000m max | 2000m max | 2000m max | 2000m max | 2000m max | 2000m max |
| *Ambient Temp. | -40 to
95℃(-40 to 203℉) |
-20 to 95℃(-40 to 203℉) | -40 to 95℃(-40 to 203℉) | -20 to 95℃(-40 to 203℉) | -40 to
95℃ (-40 to 203℉) |
-40 to 95℃(-40 to 203℉) | -40 to 145℃(-40 to 293℉) | -40 to
145℃ (-40 to 293℉) |
| *Pollution Degree | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Construction | ||||||||
| *Material | Kynar | Kynar | Kynar | Kynar | Kynar | Kynar | Kynar | Kynar |
| *Colour | Blue | Grey | Blue | Grey | Blue | Blue | White | White |
| *Mounting | 1" NPT or BSP | 1" NPT | 1" NPT or BSP | 1" NPT | 1.5" universal thread(NPTor BSP) | 1.5" universal thread(NPTor BSP) | 1" NPT or BSP | 1" NPT or BSP |
| *Cable | 2 Wire
twisted pair/braided and foil shielded, 0.5 ㎟(20 AWG)
PVC jacket |
2 Wire twisted pair/braided and foil shielded, 0.5 ㎟(20 AWG)silicone jacket | ||||||
| Weight | 0.8kg(1.8 lbs.) | 0.8kg(1.8 lbs.) | 1.3kg(2.8 lbs.) | 2kg(4.4 lbs.) | 4.3kg(19.5lbs.) | 8kg(18 lbs.) | 0.8kg(1.7 lbs.) | 1.3kg(2.8 lbs.) |
| Supply Source | Transducer shall only be supplied by Milltronics certified controllers. | |||||||
| Separation | 365 m(1200ft) | 365 m(1200ft) | 365 m(1200ft) | 365 m(1200ft) | 365 m(1200ft) | 365 m(1200ft) | 365 m(1200ft) | 365 m(1200ft) |
| Approvals | CE, CSA, FM, SIRA/ CENELEC |
FM ClassⅠ Div 1, Group A,B,C and D, ClassⅡ Div1, Group E, F and G, Class Ⅲ |
CE, CSA, FM, SIRA/ CENELEC |
FM
ClassⅠ Div 1, Group A,B,C and D, ClassⅡ Div1, Group E, F and G, Class Ⅲ |
CE, CSA, FM, SIRA/ CENELEC |
CE, CSA, FM, SIRA/ CENELEC |
CE, CSA, FM, SIRA/ CENELEC |
CE, CSA, FM, SIRA/ CENELEC |
Range specifications are "typical". Actual range is dependent upon installation conditions. Maximum power is radiated axially(perpendicular) from the transducer face in a line referred to as the axis of transmission. Where power is reduced by half(-3dB), a conical boundry defining the sound beam, centered about the axis of transmission, is established.
Specifications are subject to chande without notice.
