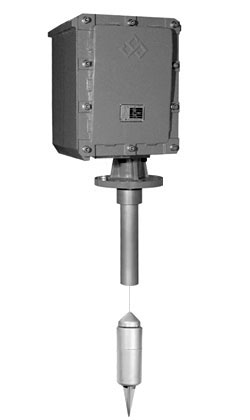

(Sounding Level Transmitter) SST

Features

• Can be used with highly viscous liquids
• 4-20 mA output
• On-site or remote displays
• Easy maintenance
• No moving parts

Specifications

ㆍBUBBLE TUBE

Description Type		SLA-100	SLA-110
Tube Type		Flexible	Pipe
Mounting		JIS 10K 100A	JIS 5K 25A
Material	Flange	PVC	SUS 304
	Detector	PVC Tube	SUS 304 Pipe
	Anchor Weight	SUS 304	SUS 304
Overall Dimension

ㆍCONTROL UNIT

CONTROL UNIT		SLA1000 for 4-wire	Overall Dimension
Model		LA1000 for 4-wire
Measuring Range		0 to 10M
Accuracy		±0.5% of span for LA1000
Temp. Characteristics		0.05% of span
Power Supply		24V ±2V DC for LA1000
Power Consumption		Approx. 1W
Output Signal		4~20mA DC
Load Resistance		800Ω Max. for LA1000
Amplification		1 to 5 times
working Temperature		0℃ to 50℃
Material	Casing	CS plate for LA1000
	Hose Nipple	Brass
Power Pressure Supply		195 to 295kPa
Air Source to Sensor		0.3 to 1 L/minute variable
Overpressure		295kPa
Mounting		Wall mounting or Pole mounting
construction		IP23(IP54 is optionally available)
Weight		Approx. 5.5kg for LA1000
