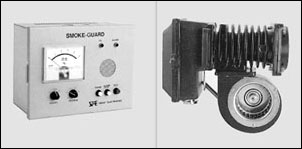

SSD-5A, Smoke-Guard is an Alarm Gauge indicating the
density of smoke exhausted to detect the statues of
exhaustion for waste gas from the boiler with ease.
SSD-5A consiste of three units including a
light-projector and an alarm indicator for exclusive use
by hanging on the wall.
This is the best product manufactured to be applied
easily to both large and small type boilers as the
related technology is utilized best. Most importantly,
SSD-5A is available for multi-purpose setting on the
boiler for heavy hot water and for water circilation.
It is simple to handle, easy to change the types or
to move to more convenient place and low cost.
| Type | Light-projector SS-5L(Pressure 12mm H2O) | |
|---|---|---|
| Light-receiver SS-5R(Pressure 12mm H2O)Controller SSD-5A | ||
| Density | 0-5(equally divided scale) | |
| Distance Set | 0-2m(between flange sides) | |
| Alarm | Setting | Density 0-5 (Optional setting available) |
| Output | DPDT Relay output, Buzzer Lamp, Adjustable, Remote alarm avaliable | |
| Power | Source | AC 110V/220V/60Hz |
| Consumption | 160VA (including fan) | |
| Weight | (Light-projector)(Light-receiver) approx 3kg each:(Alarm Indicater) approx 5kg | |
| Surrounding
Temperature Requirenemts |
(Light-projector)(Light-receiver):10~60℃ | |
| (Alarm Indicater) :10~50℃ | ||
| Insulation Resistance | (Alarm Indicater) :Between power source and earth | |
| Over 100MΩ (500MV) | ||
