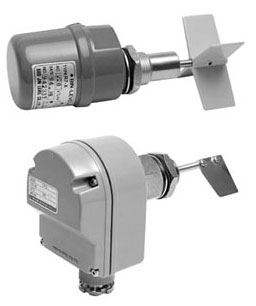

페달식 레벨 스위치 (Paddle Type Level Sensor) SPS/SR7X

Operating Principle

회전하는 축에 연결되어 있는 페달에 의해서 분체 및 알갱이를 감지. 출력방식은 마이크로 스위치 접점

Features

• 소형싸이즈
• 저가형
• 감도조정 가능
• 설치와 관리가 용이함

Application

플라스틱 펠렛,쌀, 소맥 가루로된 분체등

Specifications

Description Model		SPS	SR7X
APPLICATION		Powder, Grain, Lumps Hopper	Powder, Grains Hopper
CONTACT RATING		250V AC, 3A(1SPDT)
POWER SUPPLY		110V/220VAC ± 10%, 50/60Hz	110or220VAC ± 10%, 50/60Hz
MOTOR SPEED		0.8r.p.m(50Hz) or 1r.p.m(60Hz)	1r.p.m(50Hz) or 1.2r.p.m(60Hz)
SENSING TORQUE		Approx. 1.2kgf/㎠	Approx. 0.52kgf/㎠
POWER CONSUMPTION		3.5VA	1.5VA
LIFE	MOTOR	10 Million Cycle Continuous
	MICRO S/W	More than 100,000Times
TEMP.	SENSOR	-10~+80℃ (150℃Max.)	-10~+60℃(120℃ Max.)
	BODY	-20~+60℃ Max.
HUMIDITY		80% R.H
MATERIAL	SENSOR	SUS 304	SUS 304, P.C
	BODY	ABS+ Glass, MBsBE2	ADC P. C, MBsBE2
ENCLOSURE		Weather proof
MOUNTING		PF 1"(Std.) & Flange	PF 3/4"(Std.) & Flange
CABLE GLAND		PF 3/4"	None(Direct Cable Connection)
