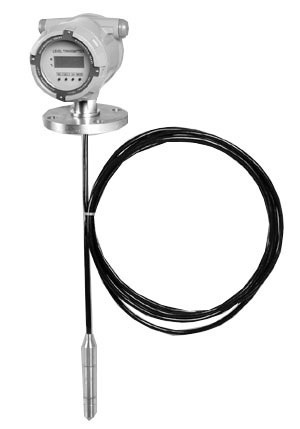

Auto Level Pressure Transmitter (Immersion Type) SPT

Features

  • Micro-processor based digital level measurement
  • Measuring renges from 0.1 to 35bar
  • Current output 4~20mA, 2-wire system
  • Low cost
  • Excellent accuracy and long term stability
  • Enclosure IP68 of wetted part
  • 4 digit LCD local display
  • Convertible dual display unit
  • Range turm down max. 50% of calibrated span
  • Poly-urethane extension cable built-in vent tube

Specifications

Description Type Description Type Side Mount Remote
Application Liquid
Power Supply Nominal 24Vdc
Output Signal 4.. 20mA(2-wire), Max 22.6mA
Delay Time 1-9.9sec
Power & Load 12.6..36Vdc(No load)
R(Kohm=(Vin-12.6)/22.6
Accuracy Linearity 0.2%FS
Hysteresis & repeatability 0.25FS
Linearity 0.2%FS
Display SPT: 4 Digit LCD, SPL:No Display
Temp. Effects -10~+70℃(Operating Temp. Range)
Measuring Range 0~30m 0.1~30 bar
Body Temp. 0~+60℃ Max.
Probe Temp. -20~+80℃ Max. -20~+120℃ Max.
MATERIAL Body ADC-12
Probe SUS 316
Enclosure Construction Intrinsically Safe((Ex ia ⅡB T6)Dust Proof(IP65)
Mounting For CableType JIS 10K 50A, PT3/4", etc.
Cable Gland PF 1/2", PF3/4",PT1/2",PT3/4"
Process Connection PF3/4", etc.
