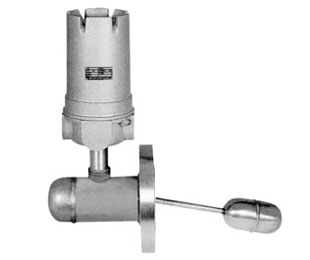

(Magnetic Float Type Level Switch) SHM-2000

Operating Principle

  • Liquid level control for high temperature and or high pressure systems
  • For control of levels in turbine service tanks of electric power plants
  • For control of boiler feedwater and other pressure vessels
  • For control of levels in oil tanks and petrochemical processing plants.
  • A variety of mounting chambers are available.
  • Simple installation
  • Choice of installation chambers

Specifications

SHM-2000 Type Std. Explosion Proof
Contact Capacity 125V AC, 15V /250V AC, 5A
Switch Micro Switch
Operating Temperature Sensing part -25~+150℃
Housing part -25~+80℃
Operating Pressure 100kgf/㎠(Max.)
Output 1SPDT, 1DPDT
S.G 0.6(Min.)
Actuation Angle ±6°
Mounting Standard JIS 10K 80A FF(Std.), Option for other
Material Sensing part SUS 304/SUS 316
Body Part SUS 304/SUS 316/CARBON STEEL
Housing part ADC 12, AC2B
Enclosure Class Weather proof Explosion proof/IP 66(Ex d ⅡB T3)
