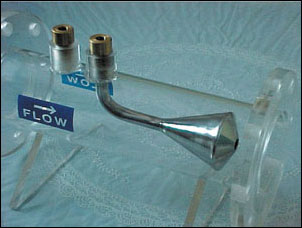

(Cone Type Flowmeter) CPD

Operating Range

  • Pipe diameter : 2-36 inches
  • Accuracy :+/-0.5 ~ 1.0% of rate
  • Repeatability :+/- 0.2%
  • Rangeability ; 15:1
  • β ratio : 0.45 ~ 0.85
  • Discharage coefficient : 0.75~0.85 typical
  • Pressure : 600 psig max.
  • Temperature : 700℉
  • Permanent pressure Drop : Approximately 20% of the differential

Applications

  • most liquid and gas

Material of construction

  • Spool piece : Carbon steel or stainless steel
  • Cone : stainless steel
  • Other materials available
