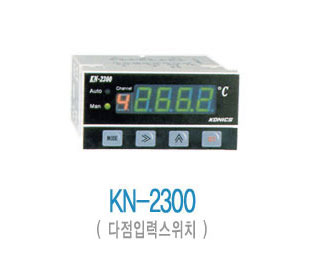

HOME > 제품소개 > 지시계 > KN-2300
온도,압력,유량,전력등 광범위하게 사용되는 디지털 및 그래픽시계는 국내 판매를 넘어 해외에도 널리 수출되고 있으며, 고품질로 고객의 요구를 만족시키고 있습니다.
● Scaling can be changed by user's choice
● Channel skip, channel converting time, Auto/Man change is possible.
● Individual channel sensor compensation is possible.
● Easy to operate Key-Board.
| DIMENSION | 96W×48H×112D mm |
|---|---|
| ACCURACY | Higher of ±0.3 F.S ±1 DIGIT(Ambient 25℃±5℃) |
| INPUT MEASURING CYCLE | 200mS |
| INPUT RESISTANCE | V(500KΩ or more), mA(250Ω), others 1MΩ |
| MAX. SIGNAL RESISTANCE | V(400Ω or less), others 1KΩ or less |
| MAX. RTD LEAD RESISRANCE | 20Ω/LINE |
| C.M.R.R | 140dB or more |
| N.M.R.R | 50dB or more |
| POWER SUPPLY | AC 110/220V±10% 60Hz |
| POWER CONSUMPTION | 5VA |
| INSULATION RESISTANCE | 100MΩ or more(500V AC) (FG-INPUT, FG-POWER) |
| AMBIENT TEMP'/HUMIDITY | OPeration: -5~55℃(10~90%RH) |
| WEIGHT | Approx. 450g |
| INSTALLATION | PANEL Mounting Type |
| INPUT | User Unique Input Selection |
| DISPLAY | -999~9999(for mV, V, mA only) |
