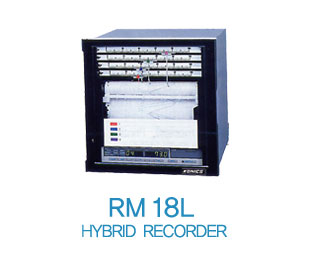

¡Ü Contact free feedback
Potentiometer and input selector
¡Ü Both trend & data logging printouts
¡Ü Universal inputs and ranges
¡Ü Wide range of power input voltage
¡Ü optional communication interface RS-232C and RS-422A
¡Ü Recording up to 4 pens & 30 points
Number of inputs | 1, 2, 3, 4, 6, 12, 24 and 30 points | |
---|---|---|
Input type | DC voltage | 4mVDC min., 20VDC max. |
Direct thermocouple | K, T, J, E, B, S, R, G, C, N, PR40, PR20, PLII, U, L, Au-Fe | |
RTD | Pt100§Ù,Pt50§Ù,JPt100§Ù,Cul 10§Ù(at 0¡É), Cul 10§Ù(at 25¡É) | |
CURRENT | 4-20mA | |
Recording accuracy | ¡¾0.5% max. | |
Chart paper | Fold chart standard, 23m long, 210mm width | |
Pen response | 1.0 sec.max. | |
Recording width | 180mm calibrated | |
Recording paper feeding speed | 1-3600mm/h,1-300mm/min in pen models 1-1800mm/h in multipoint models |
|
Recording color | 4 colors of red, green,blue, purple in pen model 6 colors of purple, red, blue, green, brown, black in multipoint models |
|
Data print color | Purple(Red on alarm for multipoint models) | |
Dot print interval | 5 sec. per channel | |
Alarm | 4 setpoints per channel(Relay1) | |
Alarm output(option) | 2 relays drive per setting, form-A, 250VAC 3A/125VDC 0.5A/30VDC 3A max. |
|
CMRR | 140dB min. in 50/80 ¡¾0.5Hz | |
NMRR | 60dB min. in 50/80 ¡¾0.5Hz | |
Isolation resistance | input/ground 500VAD, 20§Û min | |
Dielectric strength | Power input/ground 1500VAC,1minute duration Power input/ground 500VAC,1minute duration |
|
Power consumption | 30VA max in pen models, 25VA max in multipoint models | |
Weight | 14.0 kgs max.(1 pen model), 15 kgs max.(2 pen), 16.5kgs(3pen), 18kgs(4 pen), 15 kgs max.(multipoint model) |
|
Operating conditions | 0 to 50¡É, 35 to 80% RH | |
Dimension | 288(W)¡¿288(H)¡¿340(D)mm | |
Mounting | Panel mounting type |
